Hi there,
Im 14 , i’ve loved the simplisity of turing tumble and this is my first contribution to the community.

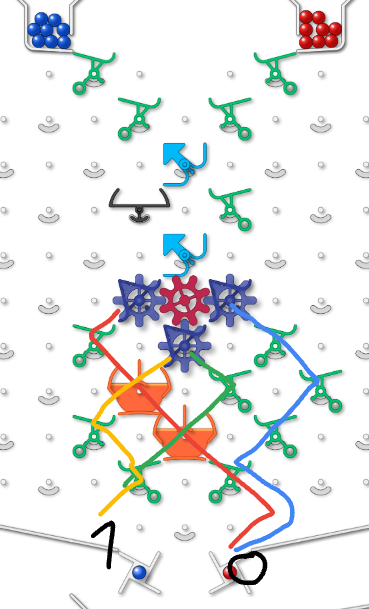

I call this a ULG (universal logic gate) and here’s how it works and how to use it.
The top three componest aren’t necessary and can be ignored, those are just there so first a ball goes through it gives an output and the output ball gets cought in the black container.
the top bit is the first piece of information, the three purple ones are basicaly one bit
After the ball has gone through the toothwheel bits it has 4 outcomes/outputs (11 10 01 00) with the first bit being equal to the state of the top bit and the second bit being equal to the state of the purple bits.
These can be rewired to preference, this rewireïng defines the gate type (OR AND NAND XOR …) and where the ball goes.
I hope this reaches some people.
P.S: If this already exists, please notify me.
